PRI Radial Flux Motors

New design, scalable in terms of length and performance

Sie verfügen leider nicht über die Berechtigung zum Download dieser Datei.
Sollten Sie der Meinung sein das dies nicht korrekt ist, kontaktieren Sie bitte den Betreiber der Webseite.

As an expert in control and drive technology, HEINZMANN has developed a new motor family that impresses with its new modular concept and high efficiency.

PRI motors are scalable in length and output power and therefore offer maximum flexibility. We adapt the motor optimally to your requirements for series production.

New Design

Scalable in length

Scalable in Performance

Maintenance-free & durable

Overview

Series PRI Radial Flux Motors

New design scalable in length and output power.

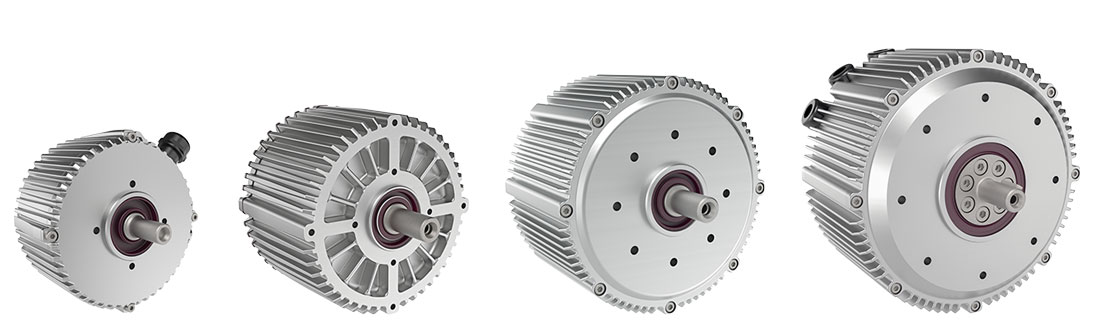

The series includes the variable models PRI 70 / PRI 90 / PRI 110 and PRI 135 and is characterised by the following features:

High efficiency
Max. power/torque
Modular concept
Simple design for series production
