OPTIMUM VALUE FOR MONEY

in brushed disc motors

Brushed SL disc-type motors are extremely flat direct current motors. They are the ideal drives for applications with limited installation space. Reliable and with quiet and smooth running, they also boast very good controllability and a high power of up to 1.1 kW. Thanks to a thin, non-ferrous disc armature, SL direct current motors have a very low mass moment of inertia and are completely free of detent torques. The HEINZMANN SL disc motors are a drive solution which, apart from the size advantages, can convince with a balanced price-performance ratio.

 High power density

Dynamic

Flat

Robust

loading...

Overview

SL 080-F

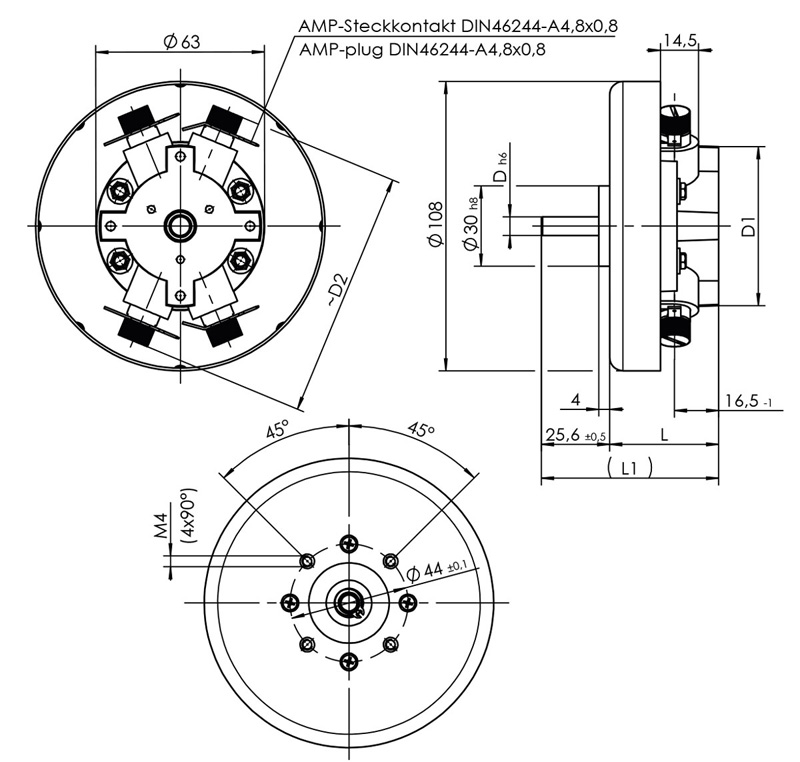

SL 100-F

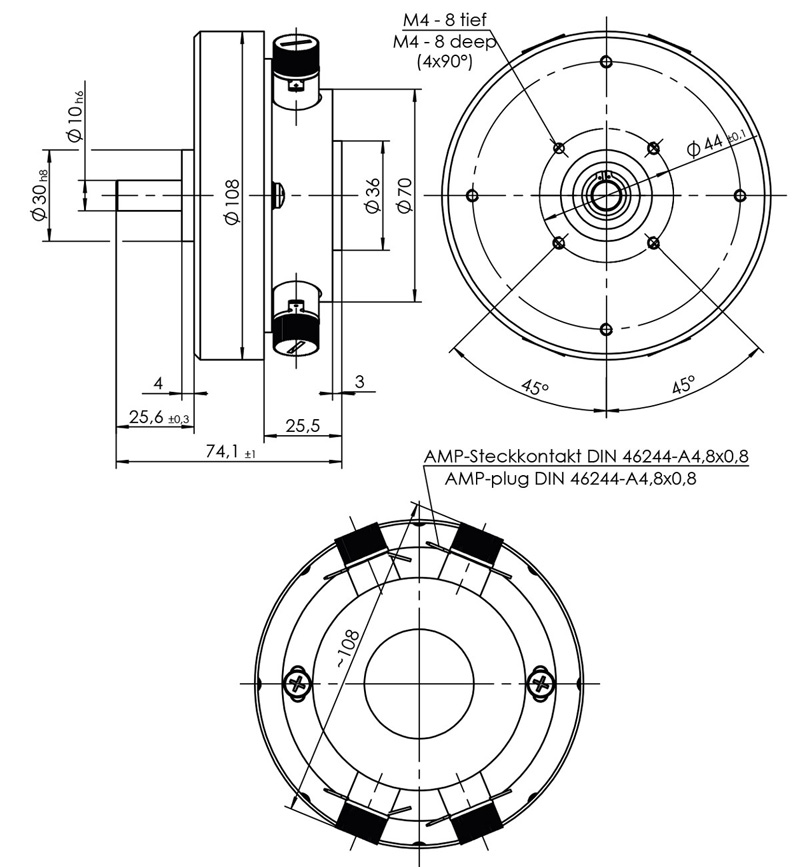

SL 100-1NFB

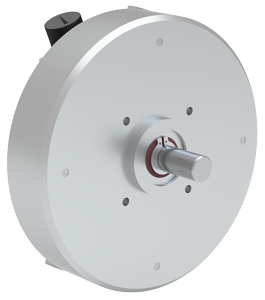

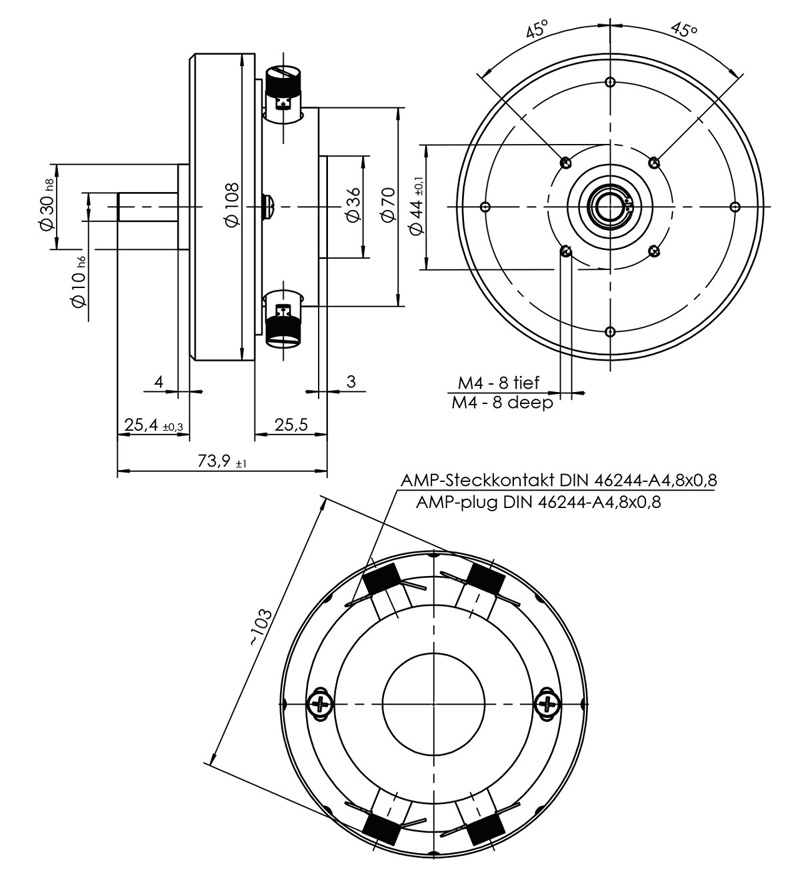

SL 100-2NFB

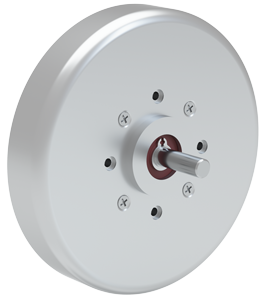

SL 120-F

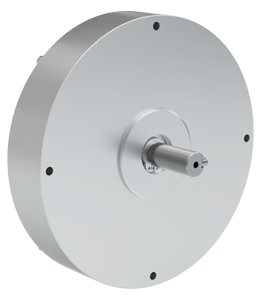

SL 120-1NFB

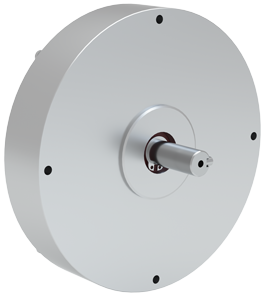

SL 120-2NFB

SL 160-2NFB

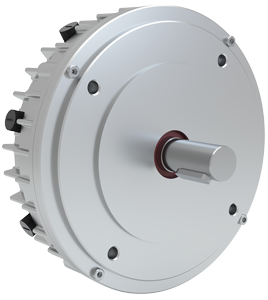

SL 180-2NFB

Series SL disc motors

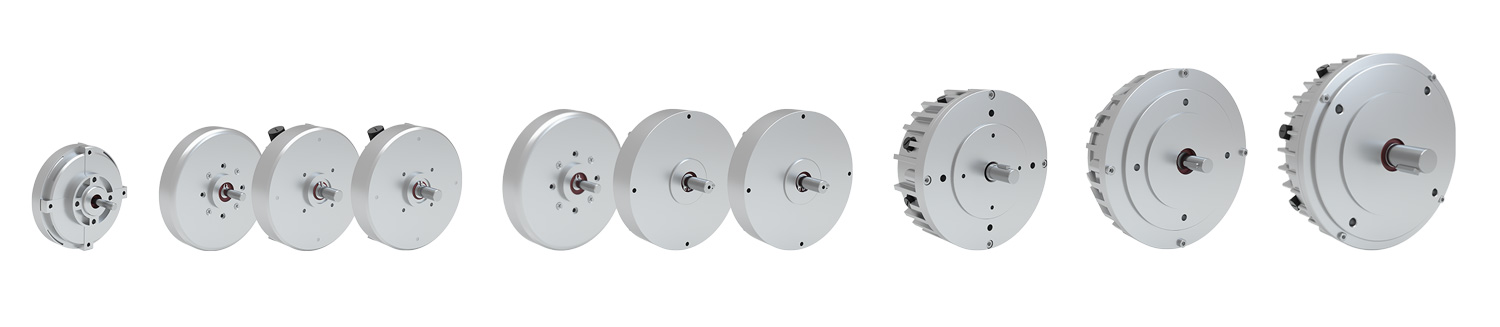

Robust DC motors with brushes in a particularly flat design. Where operating time and installation conditions speak against a brushless motor variant, the extremely flat design of the SL series disc motors from HEINZMANN opens up a wealth of design options at affordable prices.

SL Reihe

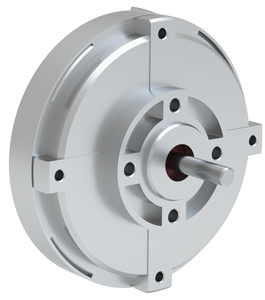

SL 080-F

Motor data
  • Rated speed: 3500 | 6000 | 6800 rpm
  • Rated power: up to 43 W
  • Rated load torque: 6 ... 8.5 Ncm
  • spannungprodukte: 12 ... 33 VDC

SL 100-F

Motor data
  • Rated speed: 1900 ... 6500 rpm
  • Rated power: up to 70 W
  • Rated load torque: 10 ... 15 Ncm
  • spannungprodukte: 12 ... 48 VDC

SL 100-1NFB

Motor data
  • Rated speed: 3000 ... 5700 rpm
  • Rated power: up to 140 W
  • Rated load torque: 18 ... 36 Ncm
  • spannungprodukte: 12 ... 36 VDC

SL 100-2NFB

Motor data
  • Rated speed: 2100 ... 5300 rpm
  • Rated power: up to 170 W
  • Rated load torque: 24 ... 56 Ncm
  • spannungprodukte: 12 ... 48 VDC

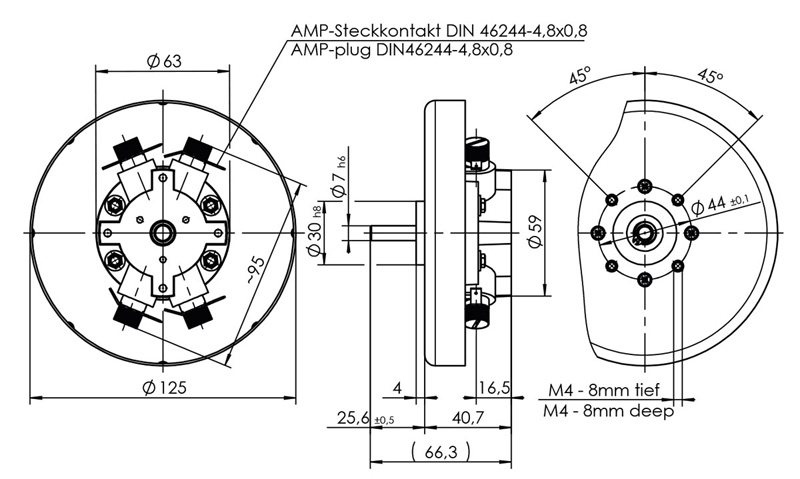

SL 120-F

Motor data
  • Rated speed: 1600 ... 7100 rpm
  • Rated power: up to 130 W
  • Rated load torque: 16 ... 29 Ncm
  • spannungprodukte: 12 ... 72 VDC

SL 120-1NFB

Motor data
  • Rated speed: 1600 ... 5400 rpm
  • Rated power: up to 310 W
  • Rated load torque: 19 ... 90 Ncm
  • spannungprodukte: 12 ... 80 VDC

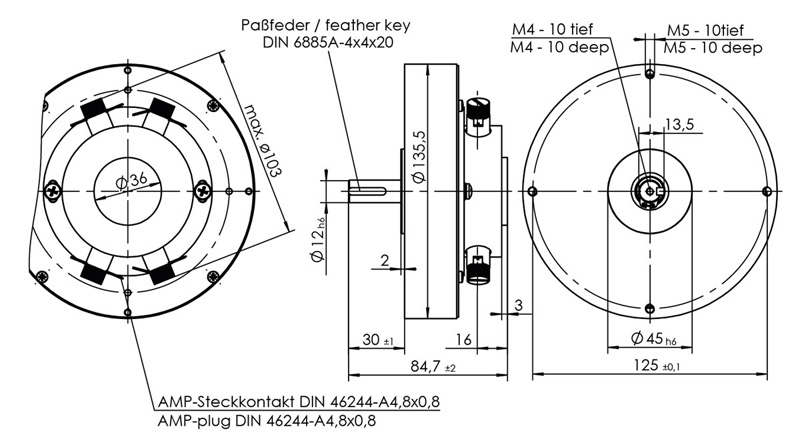

SL 120-2NFB

Motor data
  • Rated speed: 2100 ... 5300 rpm
  • Rated power: up to 170 W
  • Rated load torque: 24 ... 56 Ncm
  • spannungprodukte: 12 ... 48 VDC

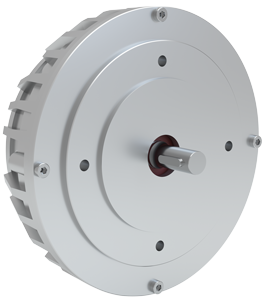

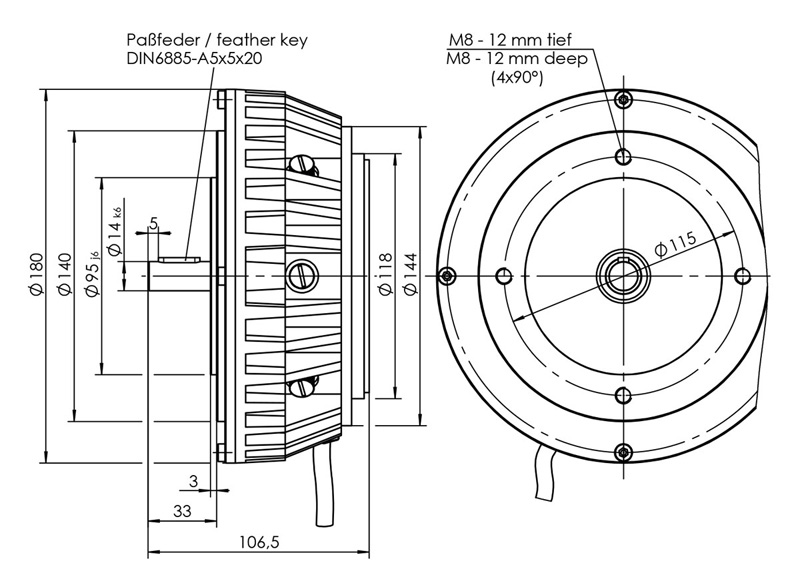

SL 160-2NFB

Motor data
  • Rated speed: 1400 ... 4000 rpm
  • Rated power: up to 710 W
  • Rated load torque: 100 ... 315 Ncm
  • spannungprodukte: 36 ... 120 VDC

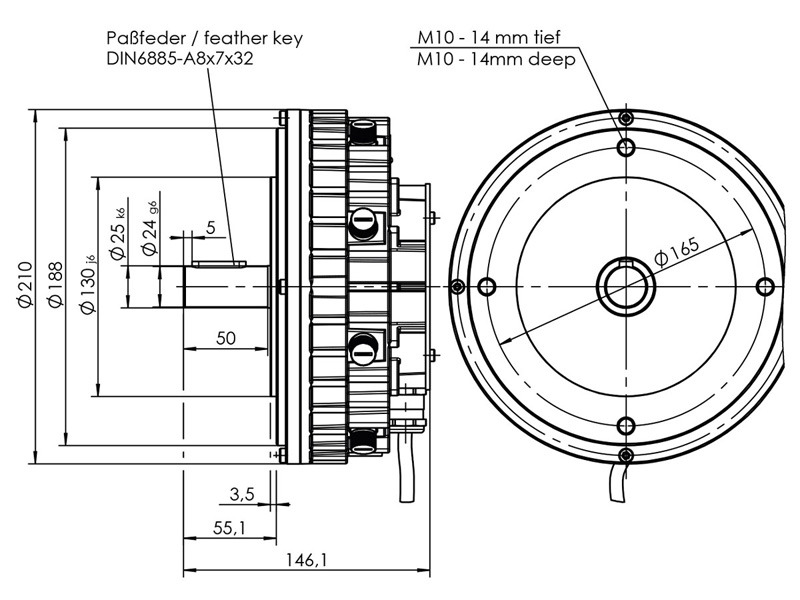

SL 180-2NFB

Motor data
  • Rated speed: 1500 ... 3600 rpm
  • Rated power: up to 1100 W
  • Rated load torque: 250 ... 480 Ncm
  • spannungprodukte: 60 ... 220 VDC
